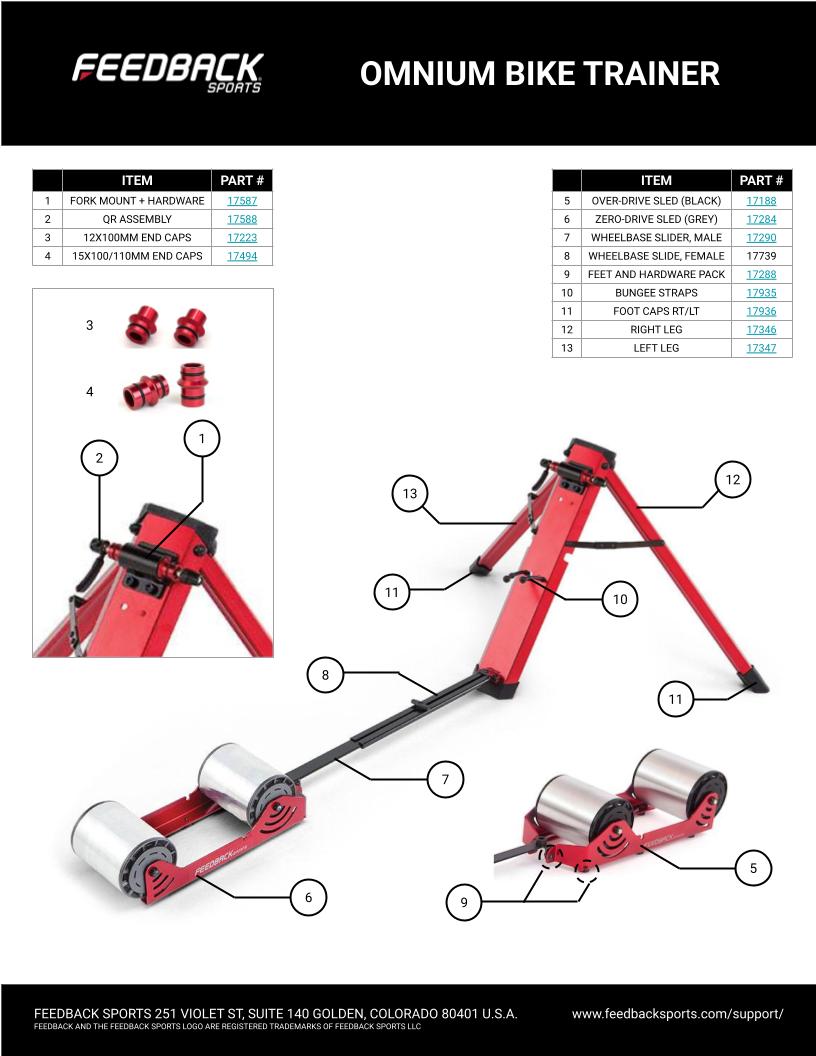

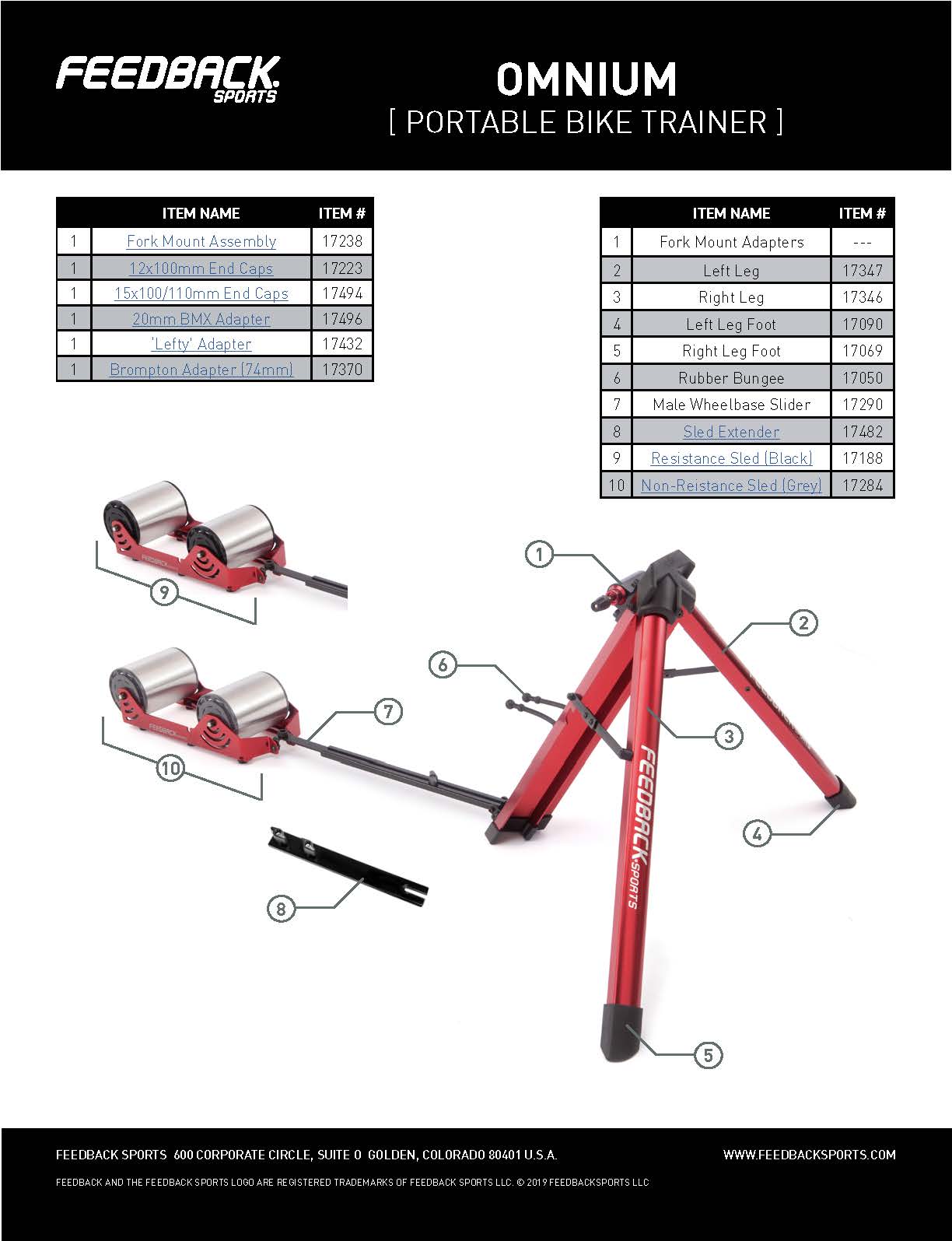

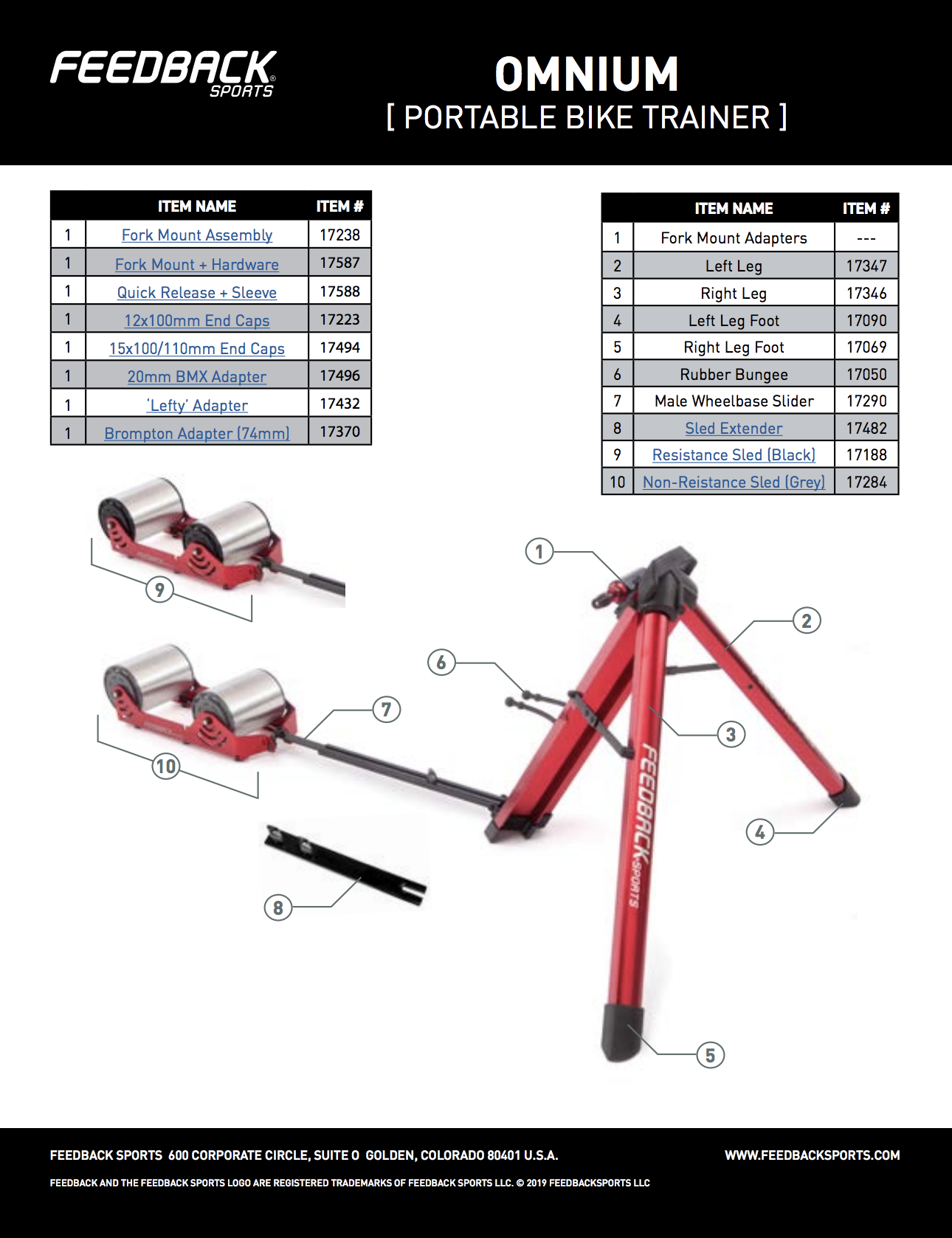

Omnium Small Parts :

Omnium Small Parts Print

Created by: Matt Whitby

Modified on: Fri, 3 Jun, 2022 at 2:22 PM

omnium over drive

Omnium Over-Drive (Black sides)
17084

Omnium zero drive

Omnium Zero drive (Grey sides)
17250

fork mount

Fork Mount
17238

lefty adapter

Lefty Adapter
17432

Quick Release and Adapter Sleeve
17588

15x100/110 adapter

15×100/110MM Thru Axle End Cap
17494

12mm end cap

12mm End Caps
17223

wheelbase extension

Wheelbase Extension
17482

omnium rear sled

Resistance Rear Sled (Black Sides)
17188

omnium no resistance sled

Non Resistance Sled (Grey Sides)

17284

sweat guard

Sweat Guard
16993

Omnium Travel Bag 16982	Male Wheelbase Slider 17290	Brompton Fork Adapter (74mm) 17370
Fork mount and Hardware 17587

pdf

Omnium Servi...

(374 KB)
