Classic/Ultralight Stand Service Parts Diagram

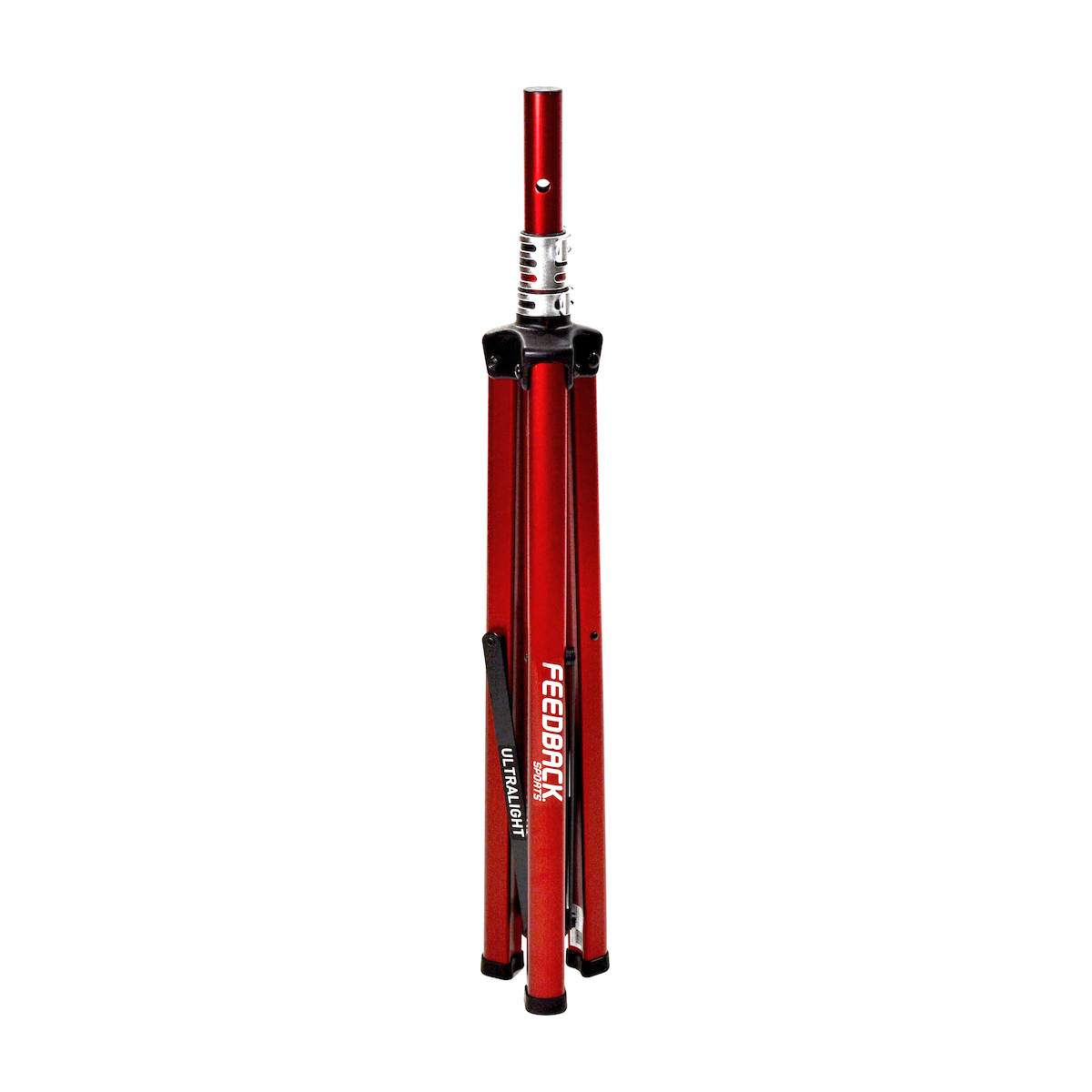

Ultralight repair stand
Ultralight
16415

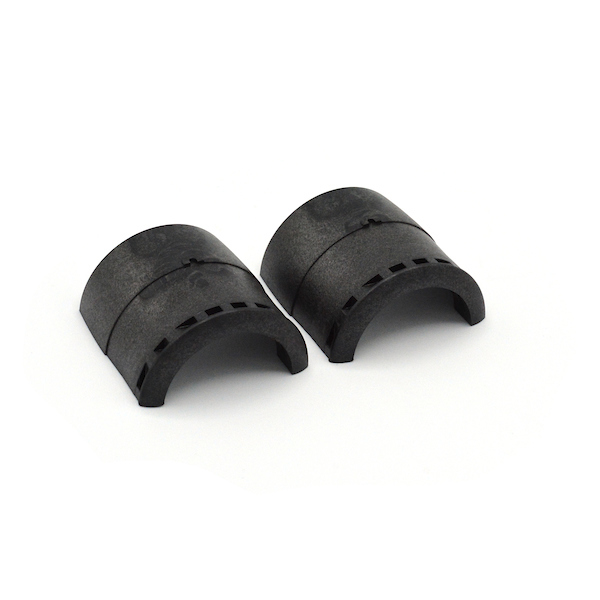

black clamp jaws Black Clamp Jaws
15414
classic travel bag Classic Travel Bag
16505
ultralight travel bagUltralight Travel Bag
16503
slide lock cam pocketSlide Lock Cam Pocket
15549
dust capDust Cap for Rear Tri Knob
17913
front hand knob Front Hand Knob
17918
axle kitRear Axle Kit
16537
rear tri knobRear Tri Knob
15931
bearing and washer kitThrust Bearing and Washer Kit
16538
tall collarTall Collar
16709
clutch cupClutch Cup
15922
collar bushingPro Collar Bushing (Older Models)
16326
brass stop nutBrass Stop Nut
17912
quick release free collarQuick Release Free Collar
16708		clutch body dust coverClutch Body Dust Cover
17919		roll pin
Roll Pin
17890
foot capPro Foot Cap
17891		Slide Lock Clamp Head
14741

Top Plug
17908






Hinge Pin
17802




Leg Assembly
16552		Stop Sleeve
13751

Pro Mechanic Tripod
16415
