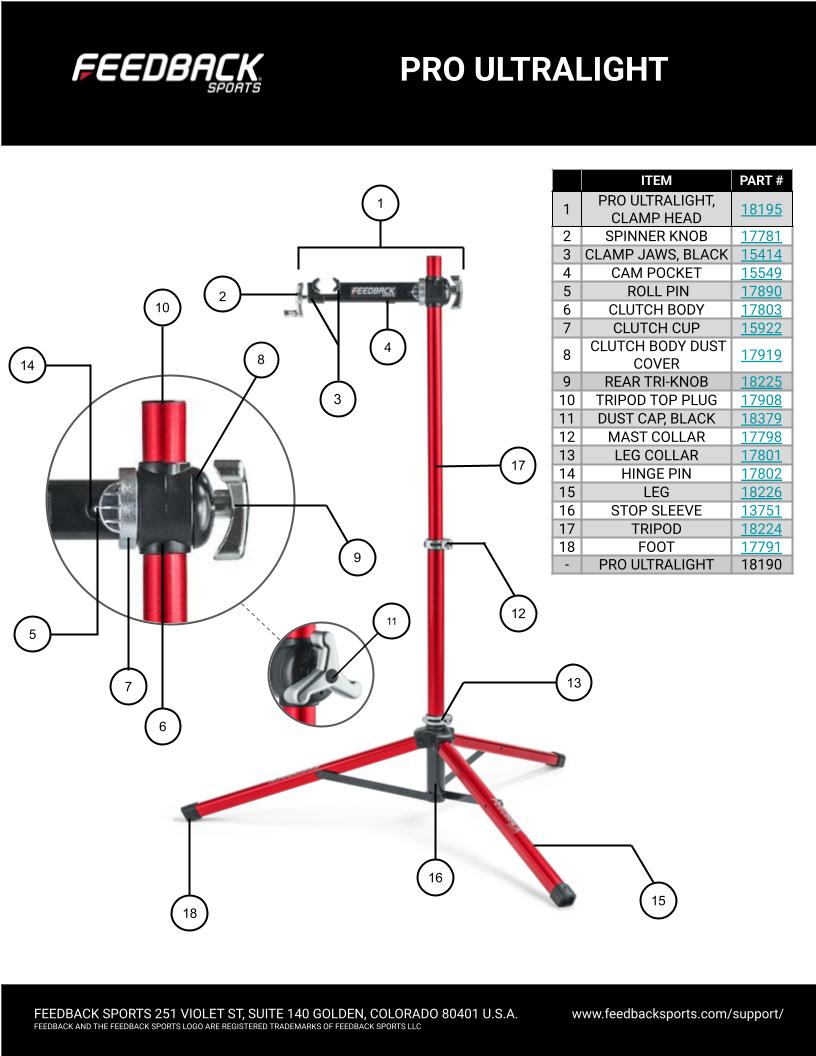

Pro Ultralight Diagram and Small Parts Print

Created by: Tech Support

Modified on: Tue, 25 Nov, 2025 at 8:15 AM

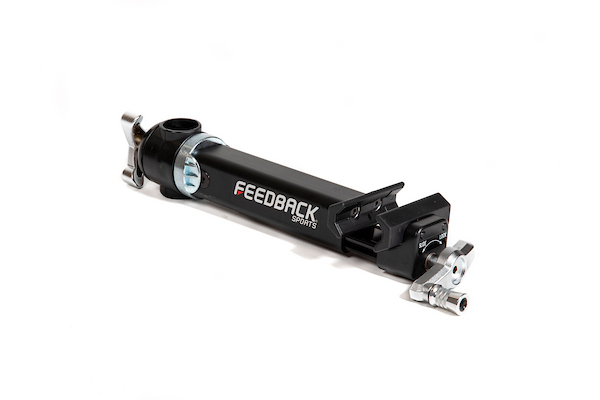

Ultralight Pro Clamp Head
18195

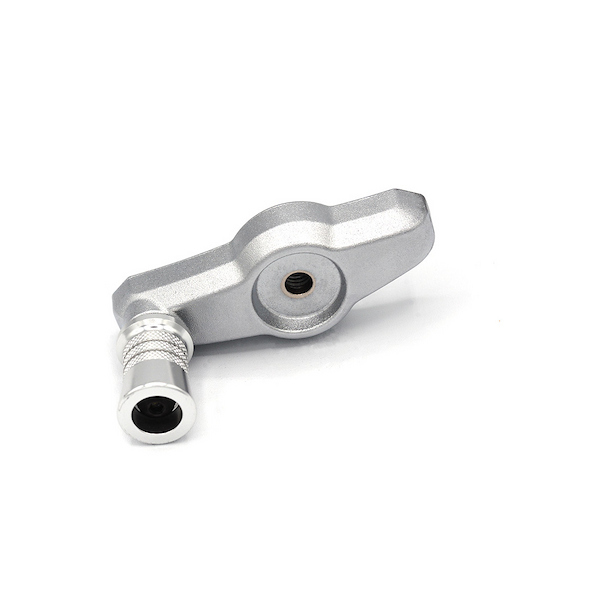

Spinner Knob
17781

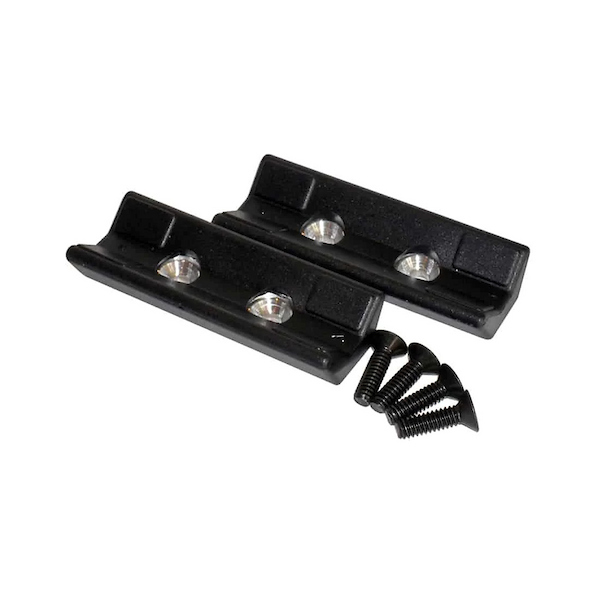

Clamp Jaws, Black
15414

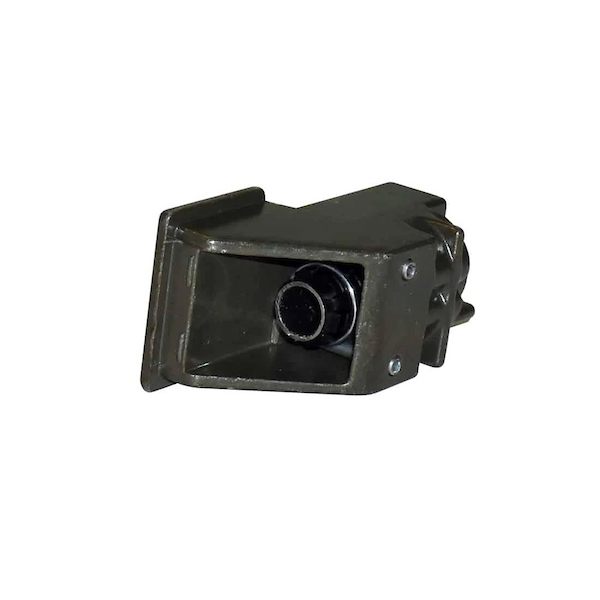

Cam Pocket
15549

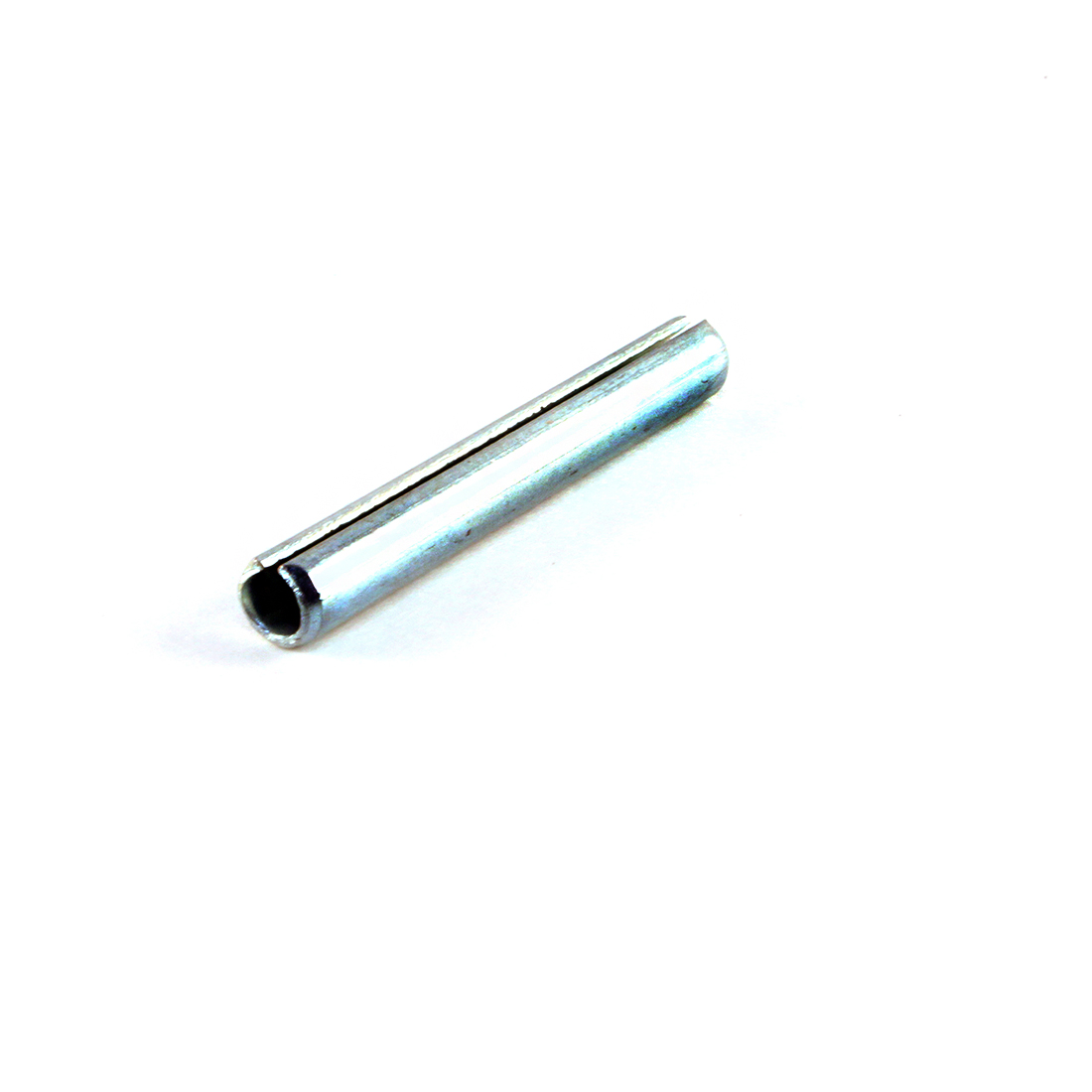

Roll Pin
17890

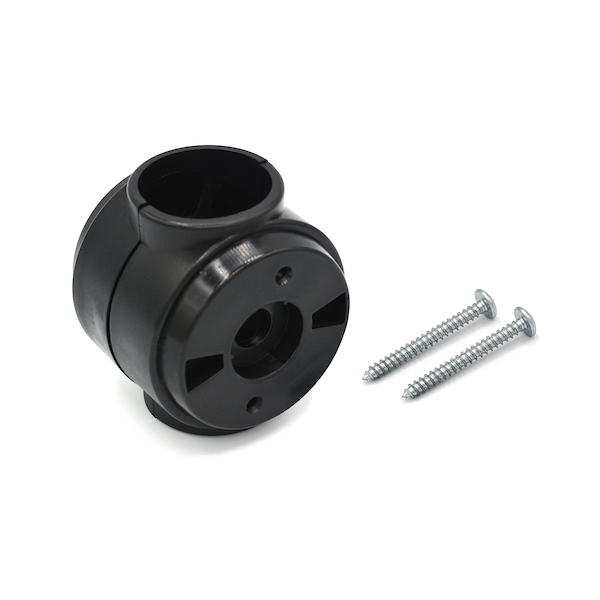

Pro Mechanic Clutch Body
17803

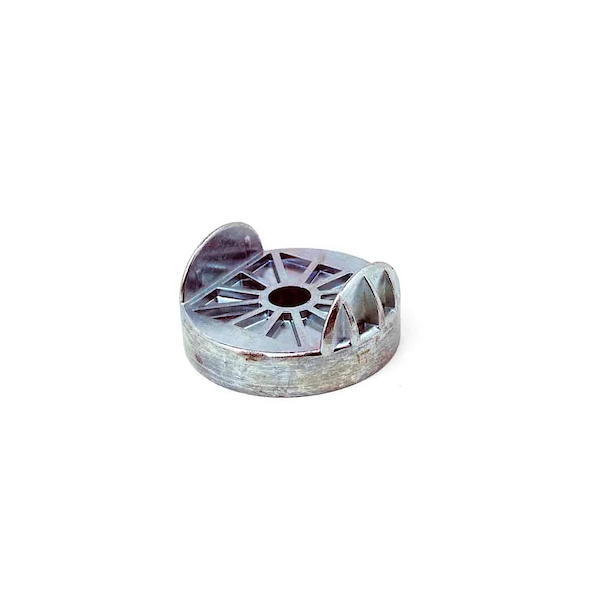

Clutch Cup
15922

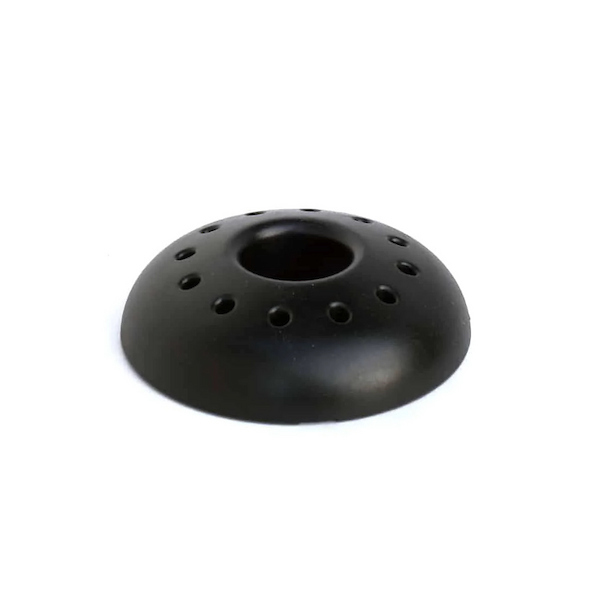

Clutch Body Dust Cover
17919


Rear Tri Knob
 18225

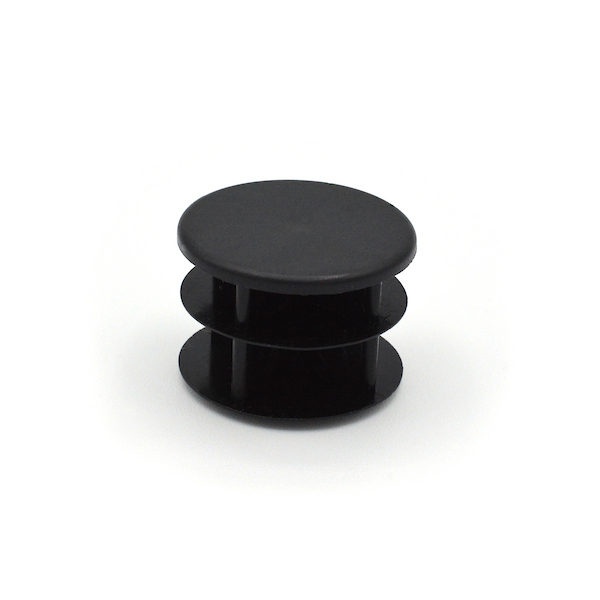

Tripod Top Plug
 17908





Black Dust Cap
18379

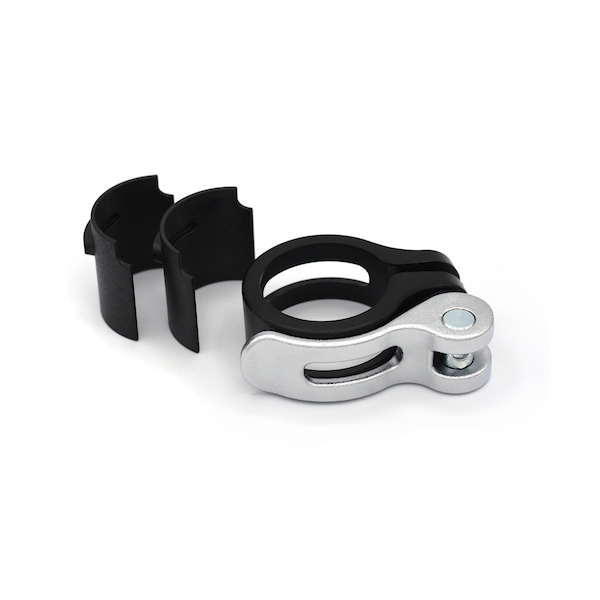

Mast Collar
17798

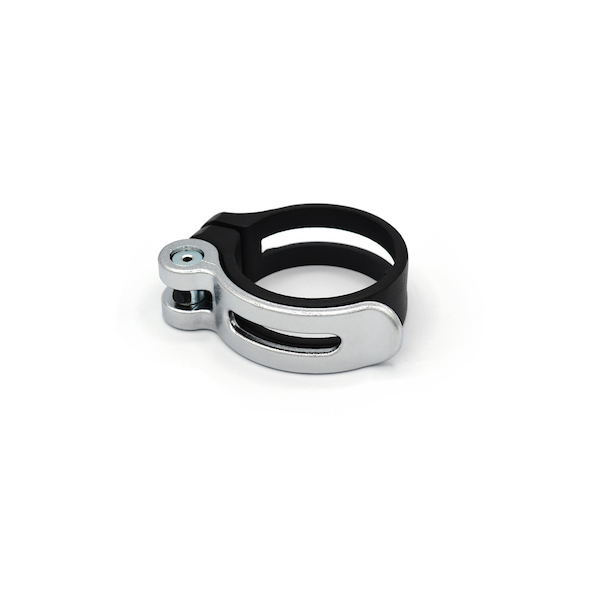

Leg Collar
17801
Hinge Pin
17802

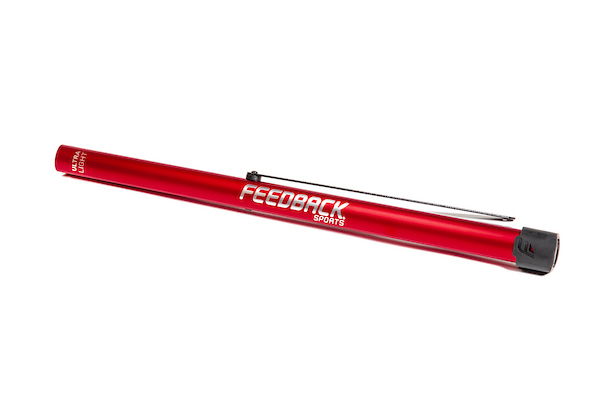

Leg Assembly
18226

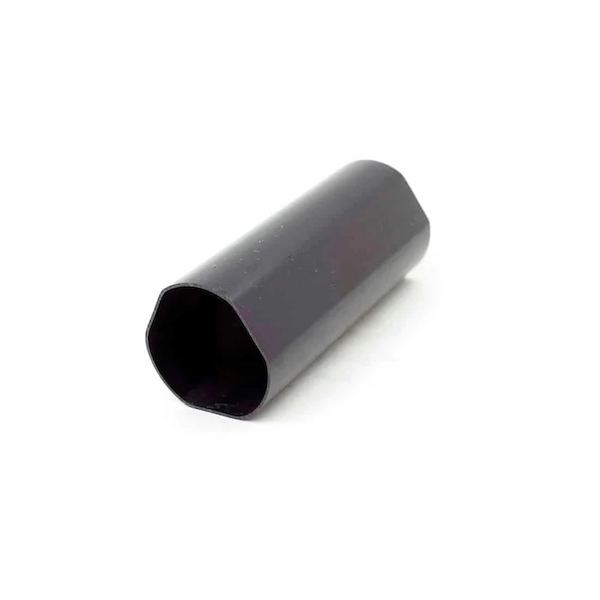

Stop Sleeve
13751

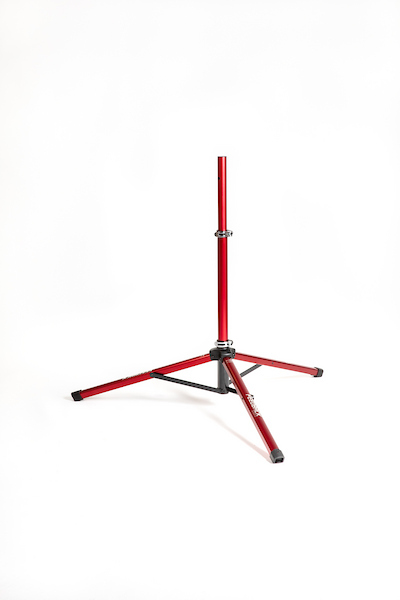

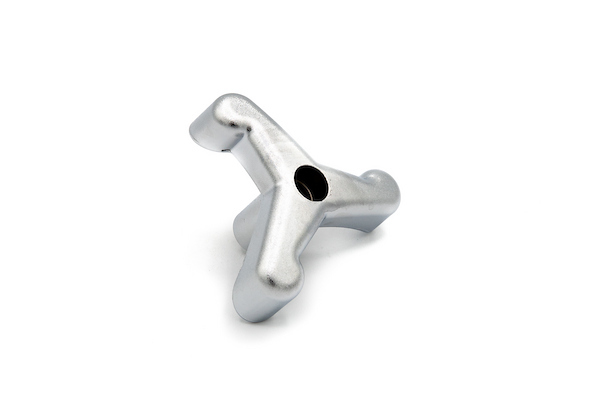

Tripod
18224

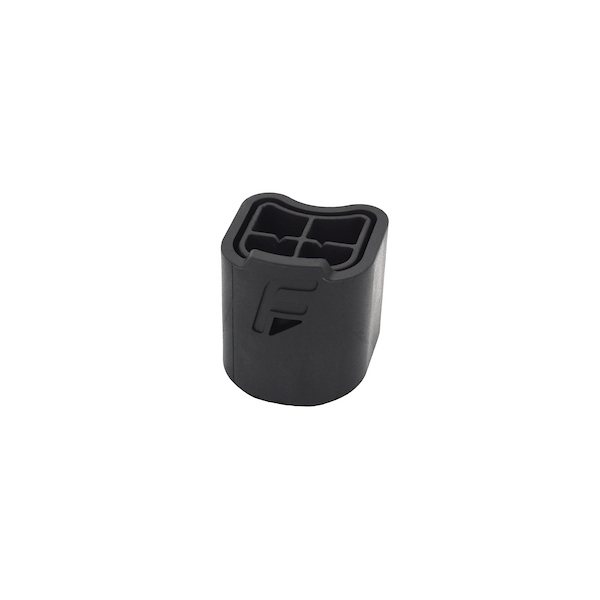

Foot
17791
Rear Axle Kit
16537

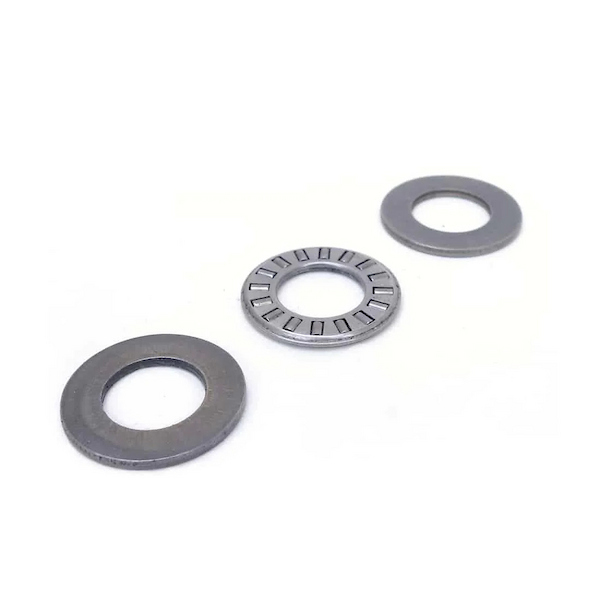

Thrust Bearing and Washer Set 16538

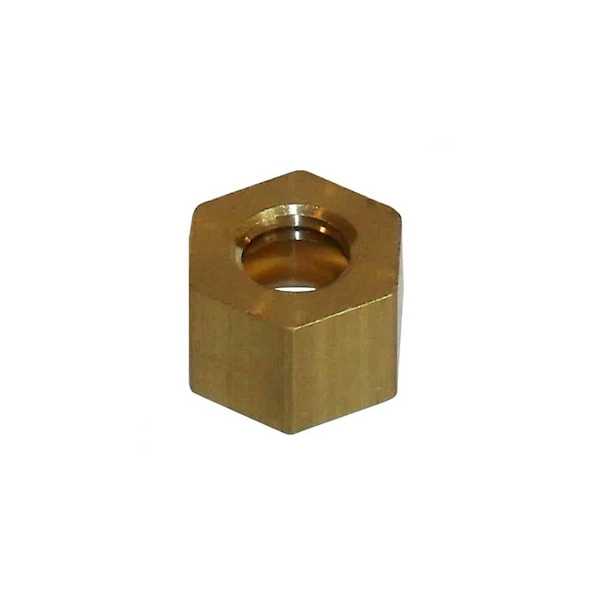

Brass Nut
17912
